Pressure failure system

1.900,002.200,00

The BigAirBag Pressure Failure System is the safest available system for airbags. The system has two features: a unique two-way audio and visual warning system for in case of power failure and/or blower failure and a built-in traffic light system that indicates if the pressure is correct.

Country of Origin: The Netherlands

The BigAirBag Pressure Failure System is the safest available system for airbags. The system has two features: a unique two-way audio and visual warning system for in case of power failure and/or blower failure and a built-in traffic light system that indicates if the pressure is correct (green) or too high or too low (red) and gives an audio alarm to warn jumpers. The system is also modular and expandable with more traffic light but also interactive systems such as sound or light effects when a user jumps.

The unique two-way power failure system is especially developed for BigAirBag. A ‘normal’ power failure system only measures if enough power is supplied to the blower and if this is not the case (due to eg. power outage), the alarm goes off. The BigAirBag Power Failure System also measures if the blower itself is demanding enough power. So if the blower itself breaks, the system will also go off.

The pressure failure system constantly measures the the pressure inside the BigAirBag. This prevents operators from setting the BigAirBag too soft or too firm and prevents injuries. It also lets users and operators know the system is safe or not using a traffic light system with auditory alarm. The pressure can be read from any machine with wifi eg. laptop or smartphone.

Compliant with worldwide regulations and consists of modular parts. Maximum of 2 blowers per system.

Included:

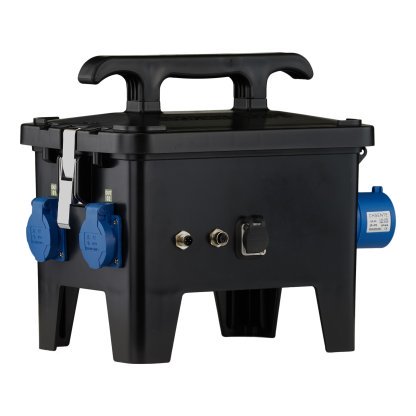

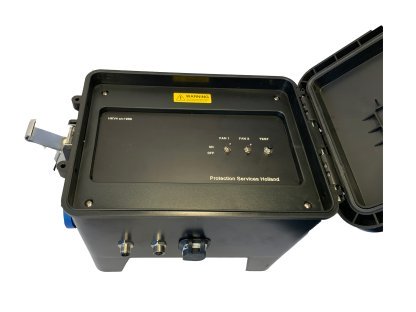

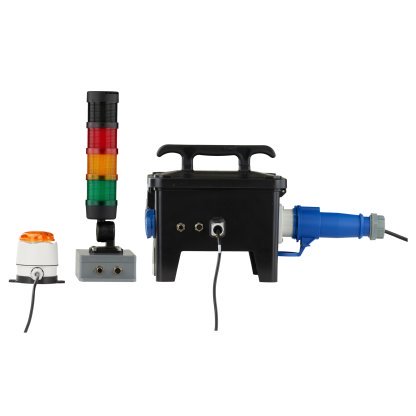

  • BigAirBag Alarm Box with battery that lasts 9 hours
  • Alarm Pod (visual and auditory alarm) with 3m / 9 ft cable.
  • Traffic light with cable
  • Power supply cable (1m / 3 ft) with plug type F (220v) or plug type B (110v), other plugs on request
SKU: N/A Category:
Weight 12 kg
Dimensions 60 × 40 × 30 cm
Voltage

110v, 220v

Plug TypePlug Type (see photo for example)

B, F, G, I
